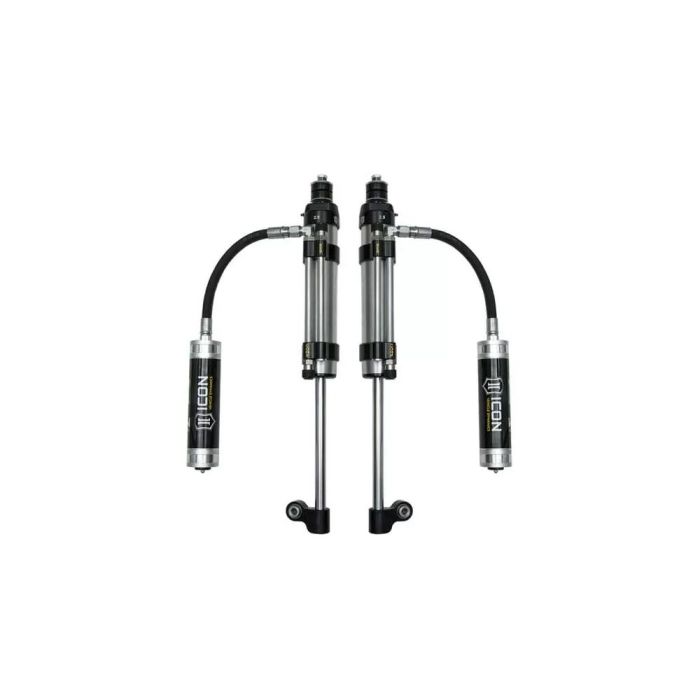

ICON Vehicle Dynamics 2005-Up Toyota Tacoma Rear RTX 2.5 Omega Bypass RR Shocks Pair- ICON-59926P

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON's use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal "Bump Zone" that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.

View Installation Instructions

Features:

• ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
• Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
• Bypass tubes are replaceable in the event of damage
• Internal "Bump Zone" increases damping force to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable

• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable: Yes
• Boot Included: NO
• Bore Diameter: 2.25 IN
• External Reservoir: Yes
• Gas Charged: Yes
• Lower Mount Type: EYELET
• Mounting Hardware Included: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 611008 - 9/16 RXT HEAVY DUTY STEM BUSHING KIT
• Service Parts: 257341S - 7/8 SHAFT 15.25 OAL, 11.00 TRAVEL SHORT
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 191015 - 10" FINNED RESI UPGRADE KIT
• Shock Absorber Body End Measuring Point: Shoulder of Stem
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Tube Outside Diameter: 2.5 IN
• Upper Mount Type: Stem

• Toyota Tacoma Base 4WD 2005-2015
• Toyota Tacoma Pre Runner 2005-2015
• Toyota Tacoma SR5 Prerunner 2006-2009
• Toyota Tacoma TRD Sport Prerunner 2006-2009
• Toyota Tacoma Base Prerunner 2006-2006
• Toyota Tacoma TRD Sport 2010-2022
• Toyota Tacoma TRD Pro 2015-2022
• Toyota Tacoma SR 2016-2022
• Toyota Tacoma Edicion Especial 2016-2022
• Toyota Tacoma SR5 2016-2022
• Toyota Tacoma Limited 2016-2022
• Toyota Tacoma TRD Off-Road 2016-2022
• Toyota Tacoma Sport 17-22
• Toyota Tacoma Nightshade 2021-2022
• Toyota Tacoma Trail 2021-2021
