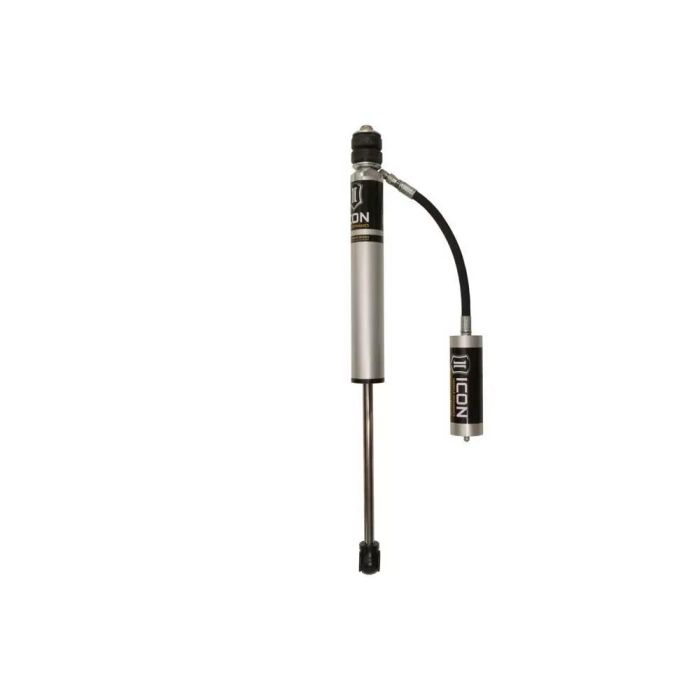

ICON Vehicle Dynamics 2005-Up Toyota Tacoma 4WD 0-1.5" Lift Rear 2.0 VS Remarkote Reservoir Shock- ICON-56503R

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

View Installation Instructions

Features:

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8" chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• Application-specific reservoir mounting hardware
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation
• 100% rebuildable
• 100% revalveable

• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Adjustable: NO
• Body Diameter: 2 IN
• Boot Included: Yes
• Bushing Color: Black
• Bushing Included: yes
• Bushing Material: Polyurethane
• Bushing Material: Rubber
• Coil Over Springs Included: NO
• Dust Shield: NO
• Finish: Anodized
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: EYELET
• Mounting Hardware Included: Yes
• Remote Reservoir: Yes
• Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Shock Absorber Body End Measuring Point: Shoulder of Stem
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Upper Mount Type: Stem

• Toyota Tacoma Base 4WD 2005-2015
• Toyota Tacoma Pre Runner 2005-2015
• Toyota Tacoma TRD Sport Prerunner 2006-2009
• Toyota Tacoma SR5 Prerunner 2006-2009
• Toyota Tacoma Base Prerunner 2006-2006
• Toyota Tacoma TRD Sport 2010-2022
• Toyota Tacoma TRD Pro 2015-2022
• Toyota Tacoma Limited 2016-2022
• Toyota Tacoma SR 2016-2022
• Toyota Tacoma Edicion Especial 2016-2022
• Toyota Tacoma TRD Off-Road 2016-2022
• Toyota Tacoma SR5 2016-2022
• Toyota Tacoma Sport 17-22
• Toyota Tacoma Nightshade 2021-2022
• Toyota Tacoma Trail 2021-2021
