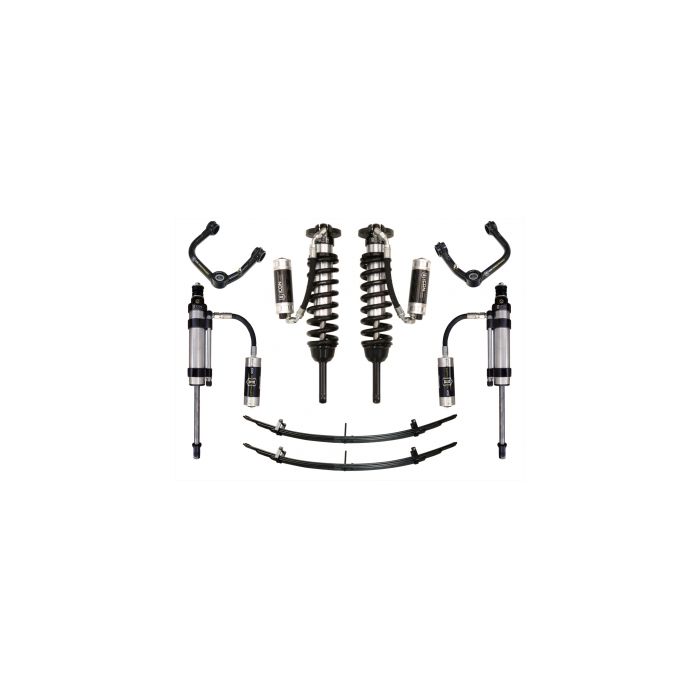

Icon Vehicle Dynamics 05-15 TACOMA 0-3.5"/ 16-UP 0-2.75" STAGE 7 SUSPENSION SYSTEM W TUBULAR UCA Toyota Tacoma Front and Rear 2005-2020- ICON-K53007T

ICON Vehicle Dynamics 2005-UP Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers? primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 7 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks equipped with ICON's CDC (Compression Damping Control) Valve. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. In addition, these 2.5 Series coilovers feature remote reservoirs for exceptional cooling properties, ICON-engineered Eibach coil springs for superior vehicle ?feel? through the range of travel, and are height adjustable from 0-3.5? of lift over stock on 2005-2015 models or 0-2.75? on 2016-UP models allowing the use of larger, more aggressive wheel and tire combinations. When used with an ICON upper control arm, these extended travel coilovers add increased droop travel to the front suspension. 2.5 Series Omega Bypass rear shocks combine vehicle-specific valving with compression and rebound adjustment giving end-users ultimate control of performance and ride quality. The ICON Vehicle Dynamics Stage 7 suspension system is an excellent choice for those drivers looking to drastically enhance the capabilities of their 2005-UP Toyota Tacoma 4WD/PreRunner on the road as well as in the dirt.

This system features billet aluminum upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

2005-2015 TACOMA 0-3.5" LIFT/16-UP 0-2.75" LIFT STAGE 7 SUSPENSION SYSTEM WITH TUBULAR UPPER CONTROL ARMS
