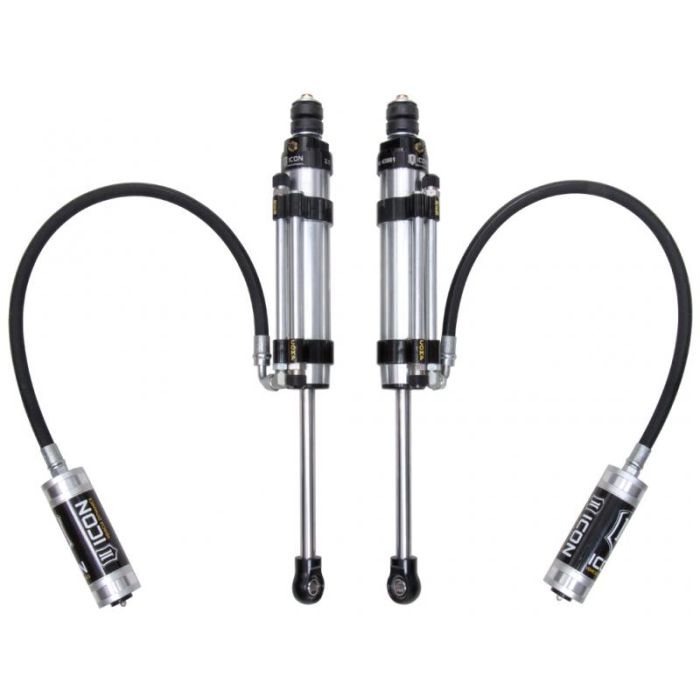

Icon Vehicle Dynamics 07-UP FJ/03-UP 4RNR/03-UP GX 1-3" REAR 2.5 VS RR OMEGA PAIR Rear- ICON-59910P
Upgrade your ride with the ICON Vehicle Dynamics Omega Series Bypass Shocks. Designed for 2007-2014 FJ Cruiser, 2003-UP 4Runner, and 2003-UP GX470/460, these shocks deliver exceptional off-road performance and a smooth street ride.
Features
- Adjustable bypass valves for customizable ride
- 100% rebuildable and revalveable
- 6061 billet aluminum manifold for increased damping force
- External reservoir for improved cooling
- Chrome shaft for durability
- 2.5" tube diameter
- Performance grade
ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.
2007-2014 FJ CRUISER/2003-UP 4RUNNER/2003-UP GX470/460 1-3" LIFT REAR OMEGA 2.5 VS REMOTE RESERVOIR SHOCK PAIR
Features
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: EYELET
- Mounting Hardware Included: Yes
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Shoulder of Stem
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Title: 07-UP FJ/03-UP 4RNR/03-UP GX 1-3" REAR 2.5 VS RR OMEGA PAIR
- Tube Outside Diameter: 2.5
- Upper Mount Type: Stem
- Service Parts: 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
- Shaft Diameter: 0.875
- Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
- Adjustable: Yes
- Boot Included: NO
- Bore Diameter: 2.25
- California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Cylinder Color: Silver
- Cylinder Material: Steel
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103404783 |
| Make Model Year | Toyota 4Runner 2014, Toyota 4Runner 2015, Toyota 4Runner 2016, Toyota 4Runner 2017, Toyota 4Runner 2018, Toyota 4Runner 2019, Toyota 4Runner 2020, Toyota 4Runner 2010, Toyota 4Runner 2011, Toyota 4Runner 2012, Toyota 4Runner 2013, Toyota 4Runner 2003, Toyota 4Runner 2004, Toyota 4Runner 2005, Toyota 4Runner 2006, Toyota 4Runner 2007, Toyota 4Runner 2008, Toyota 4Runner 2009 |
