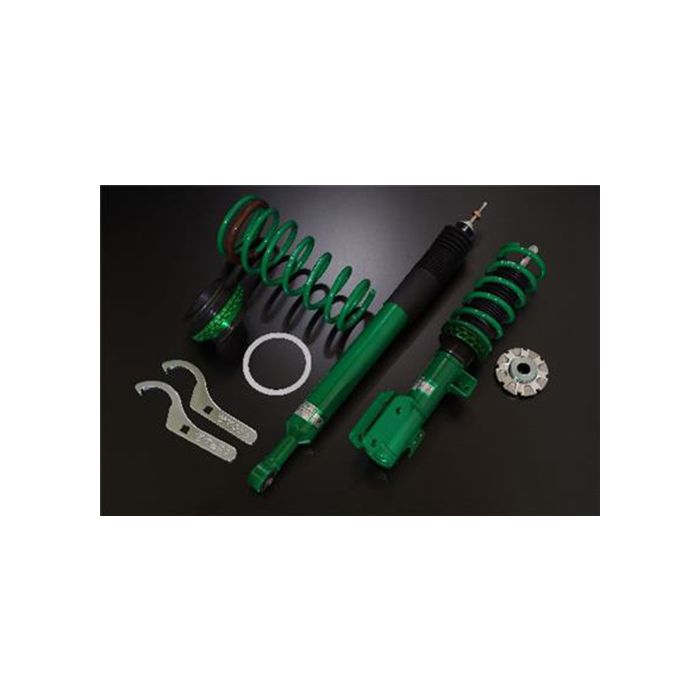

TEIN STREET BASIS Z Coilover Kit Toyota Corolla XRS AZE141L FF 2009-2010 USA- GSTB0-8USS2

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.

Front Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -40
• Recommended Ride Height (inch): -1.6
• Ride Height Adjustable Range:
  • Max Low (mm): -75
  • Max Low (inch): -3
  • Max High (mm): -22
  • Max High (inch): -0.9
  • Recommended Low (mm): -50
  • Recommended Low (inch): -2
  • Recommended High (mm): -30
  • Recommended High (inch): -1.2
• Spring
  • Rate (kgf/mm): 5
  • Rate (lbs/in): 280
  • SP PART#JC050-1F200-3
  • Free Length (mm): 200

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -52
• Recommended Ride Height (inch): -2
• Ride Height Adjustable Range:
  • Max Low (mm): -94
  • Max Low (inch): -3.7
  • Max High (mm): -26
  • Max High (inch): -1
  • Recommended Low (mm): -70
  • Recommended Low (inch): -2.8
  • Recommended High (mm): -50
  • Recommended High (inch): -2
• Spring:
• Rate (kgf/mm): 4
• Rate (lbs/in): 224
• SP PART#S8TB1-13040
• Free Length (mm): 225

• Year: 2009-2010
• Make: Toyota
• Model: Corolla
• Trim: XRS
• Drivetrain: FF
• Chassis: AZE141L
• Motor Size: 2400
• Vehicle Region: USA

• Steel Construction
• Twin Tube internal construction
• Thread Type Ride Height Adjustment
• Utilizes OEM Mounts
• 16 way adjustable dampers, compression and rebound combined
• High Durability and Reliability
• Anodized brackets with Teflon coated shock body for heavy duty rust prevention
