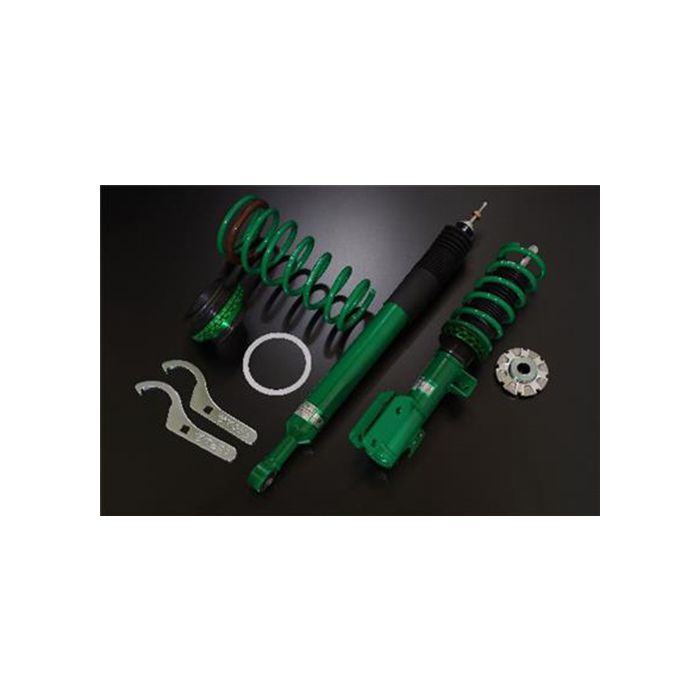

TEIN Street Basis Z Coilover Kit Scion iM | Toyota iM 15-18- GSQ94-8UAS2

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.

Features:

• Steel Construction
• Twin Tube internal construction
• Thread Type Ride Height Adjustment
• Utilizes OEM Mounts
• 16 way adjustable dampers, compression and rebound combined
• High Durability and Reliability
• Anodized brackets with Teflon coated shock body for heavy duty rust prevention

• Front Specs:
  • Spring Rate: 5 kgf/mm | 280 lbs/in
  • Ride Height Drop: -1.8 inches
  • Ride Height Adjust Range: -1.2 to -3.3 inches
• Rear Specs:
  • Spring Rate: 5 kgf/mm | 280 lbs/in
  • Ride Height Drop: -2 inches
  • Ride Height Adjust Range: -1.6 to -3 inches

• Front Specs:
  • Spring Rate: 5 kgf/mm | 280 lbs/in
  • Ride Height Drop: -1.4 inches
  • Ride Height Adjust Range: -0.8 to -3 inches
• Rear Specs:
  • Spring Rate: 5 kgf/mm | 280 lbs/in
  • Ride Height Drop: -1.6 inches
  • Ride Height Adjust Range: -1.2 to -2.6 inches

• Image is for marketing purpose only, actual product may vary
