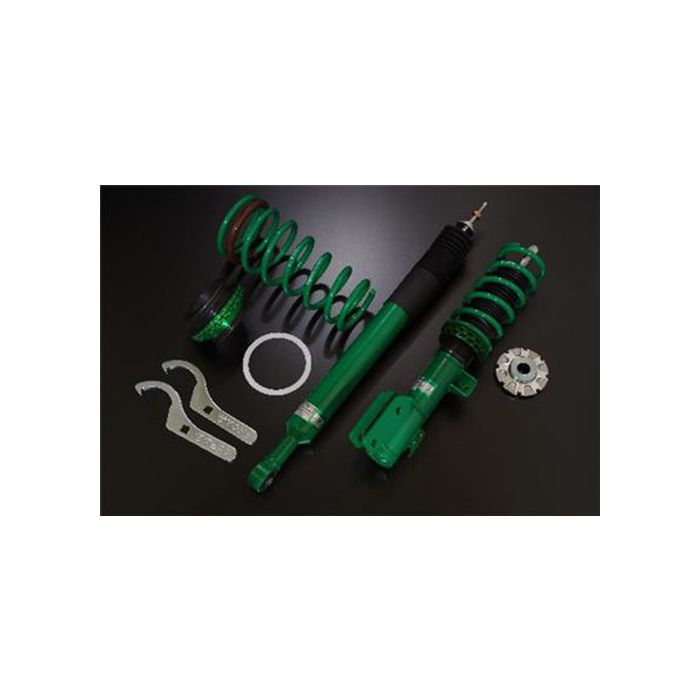

TEIN STREET BASIS Z Coilover Kit Lexus GS300 JZS160L FR 1998-2005 USA- GST76-81SS2

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.

Front Specifications:

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -40
• Recommended Ride Height (inch): -1.6
• Ride Height Adjustable Range:
  • Max Low (mm): -89
  • Max Low (inch): -3.5
  • Max High (mm): -8
  • Max High (inch): -0.3
  • Recommended Low (mm): -50
  • Recommended Low (inch): -2
  • Recommended High (mm): -30
  • Recommended High (inch): -1.2
• Spring
  • Rate (kgf/mm): 10
  • Rate (lbs/in): 560
  • SP PART#S8T60-13100
  • Free Length (mm): 250

• Damping Force Adjustment: N
• Full-Length Ride-Height Adjustable: N
• Upper Mount: OEM
• Recommended Ride Height (mm): -40
• Recommended Ride Height (inch): -1.6
• Ride Height Adjustable Range:
  • Max Low (mm): -89
  • Max Low (inch): -3.5
  • Max High (mm): -18
  • Max High (inch): -0.7
  • Recommended Low (mm): -50
  • Recommended Low (inch): -2
  • Recommended High (mm): -30
  • Recommended High (inch): -1.2
• Spring:
• Rate (kgf/mm): 9
• Rate (lbs/in): 504
• SP PART#BD090-13225
• Free Length (mm): 225
• I.D. (mm): ID70 - ID90

• Year: 1998-2005
• Make: Lexus
• Model: GS300
• Drivetrain: FR
• Chassis: JZS160L
• Motor Size: 3000
• Vehicle Region: USA

• Steel Construction
• Twin Tube internal construction
• Thread Type Ride Height Adjustment
• Utilizes OEM Mounts
• 16 way adjustable dampers, compression and rebound combined
• High Durability and Reliability
• Anodized brackets with Teflon coated shock body for heavy duty rust prevention
