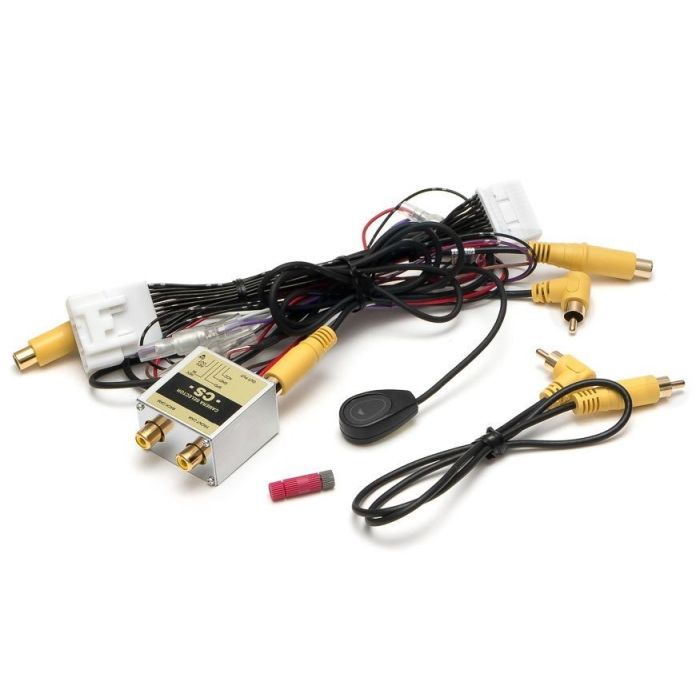

Beat-Sonic Lexus Front Camera Interface - CS11A
$199.00
sku
BEAT-CS11A
This product provides front camera connectivity for select 2014+ Lexus.
By pressing the selector button, the front camera is displayed for the duration pre-set using the inbuilt programmable timer. The timer is programmable for 5 sec, 10 sec, 15 sec, 20 sec or timer disable (i.e. push on / push off). In addition, the front camera can be programmed to automatically display at speeds less than 9mph to assist when front parking.
Integrate a front camera to display on your factory screen and work together with your backup camera
Features:
- Ability to switch between front camera, rear camera and factory Lexus screen
- Ability to display rear camera without switching the gear to reverse
- Seamless operation with a press of a button
- Built-in video noise filter for high definition resolution
- Control button to manually turn on the front camera (5 seconds)
- Ability to connect module to speed sensor for automatic front camera display at parking lot speed
- Plug and play installation requires no modification or splicing to factory harness
Specifications:
- Voltage: DC11V ~ 15V
- Current consumption: 50mA of less
- External dimensions: 40 x 25 x 57mm
- Weight: 55g
Compatibility: - 2014-2017 CT 200h
- 2015-2019 ES 350
- 2015-2019 ES 300h w/ factory navigation equipped model only
- 2015-2019 GS 200t / 300 / 350 / 450h / GS-F
- 2014-2022 GX 460 (without 360 / Bird's Eye View Camera only)
- 2014-2019 IS 200t / 300 / 250 / 350
- 2018-2022 LC 500 / 500h
- 2015-2017 LS 460 / LS 600h w/ factory navigation equipped model only
- 2018-2020 LS500 and LS500h
- 2015-2019 NX 200t / 300 / 300h w/ factory navigation equipped model only
- 2015-2019 RC 200t / 300 / 350 / RC-F
- 2016-2020 RX 350 / 450h w/ factory navigation equipped model and no 360 camera only
- 2019-2021 UX 250 / 200
Optional OE Button is only compatible with select Lexus models: - With button dimensions of 32mm x 22mm
| Brand | Beat-Sonic |
|---|---|
| Model | Lancer Evolution X, Miata NA/NB, Universal |
