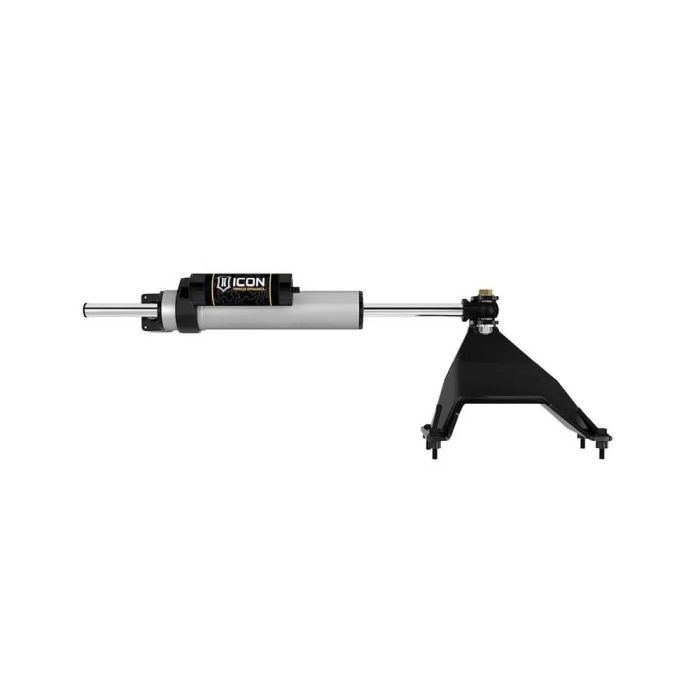

ICON 05-22 Ford Super Duty 2.5 Piggyback Centerline Stabilizer Kit- ICON-65052

The ICON Centerline Steering Stabilizer features a through-shaft design to eliminate the push/pull sensation associated with traditional steering stabilizers, resulting in more consistent damping and symmetrical steering feel throughout the input range. The large 2.5-inch diameter stabilizer body and piggyback reservoir increases fluid volume to prevent performance fade due to heat and cavitation. This unit provides a significant increase in steering damping compared to the stock equipment, for an improved driving experience with both stock size and oversize aftermarket wheels and tires. The kit also allows for increased steering travel compared to other aftermarket steering stabilizers. The stabilizer body shares components with ICON's proven 2.5 Series shock absorbers, meaning the unit is fully rebuildable. 2.5 Series features a 6061 hard anodized aluminum shock body for excellent corrosion resistance and a beefy 7/8" chrome plated induction-hardened steel shaft. FK Rod End bearings provide precise function & feel throughout steering range. Installation is 100% bolt-on using common hand tools and should be an easy job for both professional mechanics and experienced DIY'ers.

View Installation Instructions

Features:

• Through shaft design eliminates the push/pull sensation associated with traditional stabilizers
• Provides symmetrical steering feel throughout input range
• Drastically increased steering damping over stock unit
• Offers increased wheel travel compared to ICON's dual steering stabilizer kit
• Fully rebuildable ICON Vehicle Dynamics 2.5 Series shock
• Piggyback reservoir design
• 6061 hard anodized aluminum shock body provides excellent corrosion resistance
• 7/8" chrome plated induction-hardened steel shaft
• 5WT shock oil for consistent suspension damping along a wide temperature range
• FK Rod End bearings for precise function & feel throughout steering range
• 100% bolt-on installation

• Color: Black/Gray
• Cylinder Diameter: 2.5 IN
• Cylinder Material: Aluminum
• Damping Type: Oil
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Mounting Bracket Included: yes
• Shaft Diameter: 0.875 IN
• Shaft Material: Chrome
• Steering Stabilizer Configuration: Single
• Upper Mount Type: Clamp

• After Installation, Cycle Steering Left And Right To Ensure Full Range Of Steering Is Achievable And Stabilizer Is Installed Correctly
• Mounts Over Stock Front Differential Cover, Not Compatible With Most Aftermarket Covers.
• Not Compatible With 08-10 Or 15-16 F-350 Dually Equipped With Wide Track Front Axle
• Not Compatible With Aftermarket Tie Rods
• Not Compatible With F-450/F-550
• Use Icon 1" Front Bump Stop Spacers, Part # 61112, Unless The Suspension System That You Are Using Calls For Larger Bump Stop Spacers. If Using A Non-Icon Configuration, Cycle The Suspension To Verify That The Stabilizer Does Not Make Contact Upon Full Compression.

• Ford F-250 Super Duty King Ranch 4WD 2005-2022
• Ford F-250 Super Duty Lariat 4WD 2005-2022
• Ford F-250 Super Duty XL 4WD 2005-2022
• Ford F-250 Super Duty XLT 4WD 2005-2022
• Ford F-250 Super Duty Harley-Davidson Edition 2005-2010
• Ford F-250 Super Duty FX4 2008-2014
• Ford F-250 Super Duty Cabela's 2009-2010
• Ford F-250 Super Duty Platinum 2013-2022
• Ford F-250 Super Duty Base 2015-2016
• Ford F-250 Super Duty Limited 2018-2022
• Ford F-350 Super Duty King Ranch 4WD 2005-2022
• Ford F-350 Super Duty Lariat 4WD 2005-2022
• Ford F-350 Super Duty XL 4WD 2005-2022
• Ford F-350 Super Duty XLT 4WD 2005-2022
• Ford F-350 Super Duty Harley-Davidson Edition 2005-2010
• Ford F-350 Super Duty FX4 2008-2009
• Ford F-350 Super Duty Cabela's 2009-2010
• Ford F-350 Super Duty Platinum 4WD 2013-2022
• Ford F-350 Super Duty Limited 2018-2022
