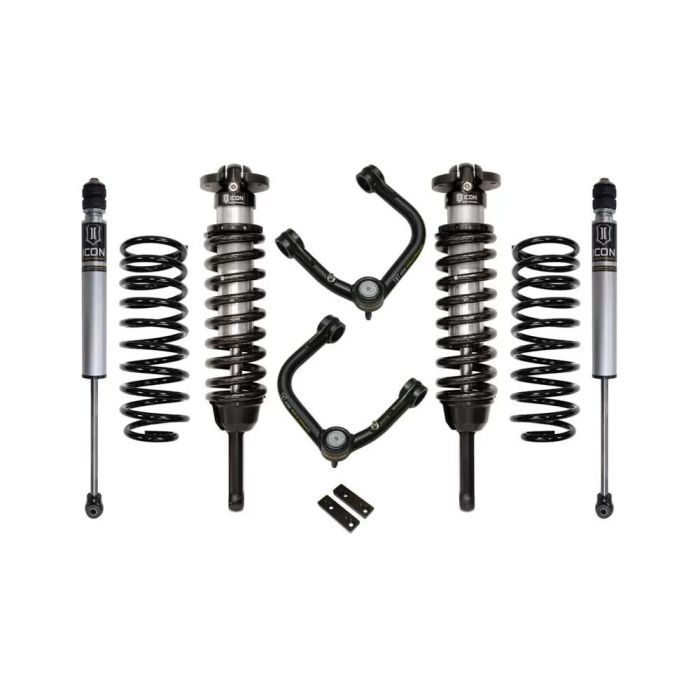

ICON 03-09 Toyota 4Runner/FJ 0-3.5in Stage 2 Suspension System w/Tubular Uca - K53052T

This ICON Stage 2 suspension system for the 2003-2009 Toyota 4Runner/2007-2009 FJ Cruiser uses the same components as the Stage 1 system with a few simple changes and additions. The 2.5 Series coilover shocks used in this system are the Extended Travel version, offering increased wheel travel that will enhance your on and off-road performance even more so than the standard travel units. Since these shocks do provide more suspension travel, they require the use of an ICON upper control arm.

View Installation Instructions

Features:

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of front lift height
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear internal reservoir shocks with 5/8" shafts
• Bolt-on system means no cutting or welding necessary for install

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Bushings Included: Yes
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Dual Rate Coil Springs: NO
• Grade Type: Performance
• Maximum Lift: 3.5 IN
• Meets or Exceeds Original Equipment Manufacture Specifications: NO
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 650 PPI

• 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes

• Toyota 4Runner 2003-2009
• Toyota FJ Cruiser 2007-2009
