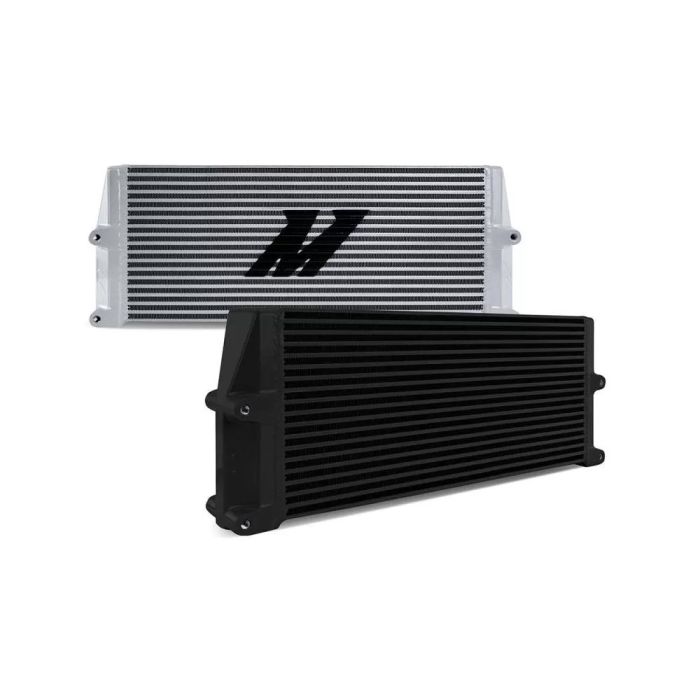

Mishimoto 17" Core Black Heavy-Duty Bar-and-Plate Fluid Cooler w/ Same-Side Outlets- MISH-MMOC-SSO-17BK

No street, track, or trail build would be complete without a fluid cooler that can keep your engine safe through it all. This Mishimoto heavy-duty fluid cooler is designed to keep your oil, coolant, or transmission fluid cool in even the most extreme situations. The 17-row core is 17" long, 7.5" tall, and 2.5" thick with a 1.95-quart capacity for effective cooling on any high-performance application. This fluid cooler features turbulated fins to evenly circulate fluid within the cooler and make the most of the full core. Large -16AN ports ensure ample flow for even the most demanding engines. The durable cast-aluminum end tanks are precision TIG welded to the bar-and-plate core for a fluid cooler that can endure the stresses of racing or everyday driving. The end tanks feature eight M8 flush mounting points with steel threaded inserts for a secure connection to any custom bracket, while the same-side inlet and outlet make routing lines simple. The available silver or black powder coat protects this cooler against the elements and complements any design. Like all our universal coolers, this 17" heavy-duty bar-and-plate fluid cooler is backed by our Mishimoto Lifetime Warranty for a lifetime of worry-free performance.

Features:

• Universal fit for any high-performance application
• Large 17-row core measures 17L x 7.5H x 2.5T to provide ample cooling in any situation
• 1.95-quart capacity for increased cooling potential
• Increase cooling efficiency with the Mishimoto 17 Heavy-Duty Fluid Cooler Fan Shroud
• Bar-and-plate core for extreme durability and cooling
• Turbulated fins circulate oil throughout the core for even and efficient cooling
• -16 ORB female threaded inlet and outlet for high flow and versatility
• Cast aluminum end tanks are precision TIG welded to core for maximum durability
• Eight M8 flush mounting hole with steel threaded inserts secure the cooler to any custom bracket
• Same-side inlet and outlet for easy line routing
• Available in durable stealth black or sleek silver powder coat
• Mishimoto Lifetime Warranty

• (1) Mishimoto Heavy-Duty Bar-and-Plate Fluid Cooler
• Mishimoto Lifetime Warranty

• SKU: MMOC-SSO-17
• Core Height: 7.79 (198 mm)
• Rows: 17
• Core Thickness: 2.55 (65 mm)
• Core Length: 17.4 (442 mm)
• Caution: It is the installer's responsibility to check all line fittings and connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
• Overall Height: 7.79 (198 mm)
• Overall Length: 20.78 (528 mm)
• Overall Width: 2.55 (65 mm)
• Inlet: 1 5/16-12 (-16 ORB)
• Outlet: 1 5/16-12 (-16 ORB)
• Fluid Capacity: 1.95 qt
