ICON 2021-Up Ford Bronco Hoss 1.0 Pkg Front 1.375-3" Lift 2.5 EXP Coilover- ICON-48601
$514.95
sku
ICON-48601
More than 2 in stock
Upgrade your 2021-Up Ford Bronco with the ICON Hoss 1.0 Pkg Front 1.375-3" Lift 2.5 EXP Coilover. Experience superior performance and enhanced off-road capability with this premium suspension system.
- Adjustable lift height from 1.375" to 3"
- 2.5" diameter coilover for improved stability
- Enhanced ride quality on and off-road
- Durable construction for long-lasting performance
- Easy bolt-on installation
Transform your Bronco into an off-road beast with ICON's top-tier coilover system.

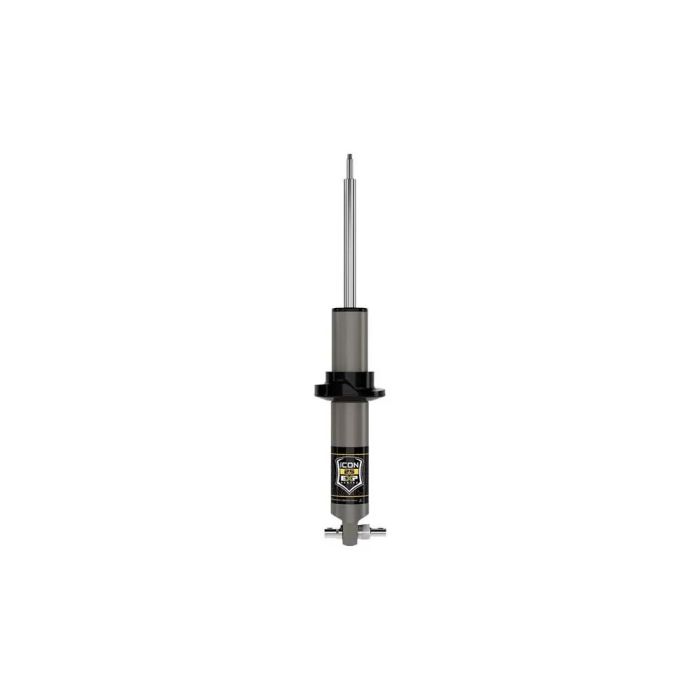

The 2021-Up Ford Bronco EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.
View Installation Instructions
Features:
- Vehicle specific design for 2021-UP Ford Bronco with HOSS 1.0 Suspension Package
- Vehicle specific tuned for superior shock damping and control
- 2.5 Aluminum Series Shock with Internal Reservoir
- Adjustable ride heights from 1.375-3" of front lift over stock with the use of snap ring
- Utilizes factory coil and coil hardware
- Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shaft
- One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearing for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
- Add-On Part: 42000 - 21-UP BRONCO HIGH CLEARANCE CRASH BAR KIT
- Add-On Part: 611082 - EXP 1" SHAFT BUMP EXTENSION
- Adjustable Damping: NO
- Adjustable Height: Yes
- Body Diameter: 2.5 IN
- Boot Included: No
- Coil Over Springs Included: No
- Damping Type: Oil
- Dust Shield: No
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: BAR PIN
- Material: Aluminum
- Material: Steel
- Maximum Lift: 3 IN
- Minimum Lift: 1.375 IN
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packages require trimming and modifications)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Remote Reservoir: NO
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Shaft Diameter: 0.875 IN
- Shock Absorber Body End Measuring Point: Flat on Bar Pin
- Shock Absorber Rod End Measuring Point: Shoulder of Stem
- Upper Mount Type: Stem
- Oem Wheels & Tires Fitment: Yes
- Exp Coilovers Are Sold Individually. A Quantity Of 2 Are Required Per Vehicle.
- Lift Heights Above 2" Over Stock May Require Aftermarket Front Upper Control Arms To Maintain Ideal Front End Alignment
- Not Compatible With Bronco Raptor
- Only Compatible With 2021-Up Ford Broncos Equipped With Hoss 1.0 Suspension Package
- Recommend Icon High Clearance Crash Bar Kit, Part Number 42000, When Running 35" Tires
- When Running 37" Tires Bump Stop Spacer Kit Part Number 611082 Is Required And Crash Bar Removal May Also Be Required, But Is Not Recommended
- Ford Bronco Outer Banks 2021-2022
- Ford Bronco Base 2021-2022
- Ford Bronco Big Bend 2021-2022
- Ford Bronco Black Diamond 2021-2022
| Brand | Icon Vehicle Dynamics |
|---|---|
| upc | 00840103414294 |
