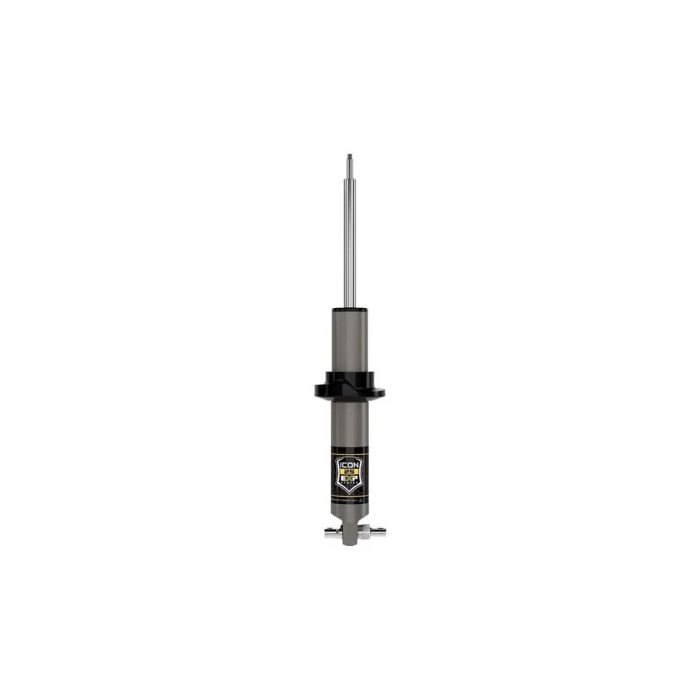

ICON 2021-Up Ford Bronco Hoss 2.0 Pkg Front 0-2" Lift 2.5 EXP Coilover- ICON-48602

The 2021-Up Ford Bronco EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.

View Installation Instructions

Features:

• Vehicle specific design for 2021-UP Ford Bronco with HOSS. 2.0 Suspension Package
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-2" of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shaft
• One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 100% Bolt-on - no cutting or welding necessary for installation
• Fully rebuildable and re-tunable

• Add-On Part: 42000 - 21-UP BRONCO HIGH CLEARANCE CRASH BAR KIT
• Add-On Part: 611082 - EXP 1" SHAFT BUMP EXTENSION
• Adjustable Damping: NO
• Adjustable Height: Yes
• Body Diameter: 2.5 IN
• Boot Included: No
• Coil Over Springs Included: No
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: BAR PIN
• Material: Aluminum
• Material: Steel
• Maximum Lift: 2 IN
• Minimum Lift: 0 IN
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: (Without Sasquatch Package): 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packages require trimming and modifications)
• Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tire packages may require fender trimming and modifications)
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: (Without Sasquatch Package): ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Remote Reservoir: NO
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Upper Mount Type: Mounting Plate

• Oem Wheels & Tires Fitment: Yes
• 37" Tires Require Bump Stop Spacer Kit Part Number 611082
• Exp Coilovers Are Sold Individually. A Quantity Of 2 Are Required Per Vehicle.
• Lift Heights Above 1.5" Over Stock May Require Aftermarket Front Upper Control Arms To Maintain Ideal Front End Alignment
• Not Compatible With Bronco Raptor
• Only Compatible With 2021-Up Ford Broncos Equipped With Hoss 2.0 Suspension Package
• Recommend Icon High Clearance Crash Bar Kit, Part Number 42000, When Running 35" Tires On Broncos Without Sasquatch Package
• When Running 37" Tires On Broncos Without Sasquatch Package Crash Bar Removal May Be Required, But Is Not Recommended

• Ford Bronco Black Diamond 2021-2022
• Ford Bronco Outer Banks 2021-2022
• Ford Bronco Big Bend 2021-2022
• Ford Bronco Badlands 2021-2022
• Ford Bronco Base 2021-2022
• Ford Bronco Wildtrak 2021-2022
• Ford Bronco First Edition 2021-2021
• Ford Bronco Everglades 2022-2022
