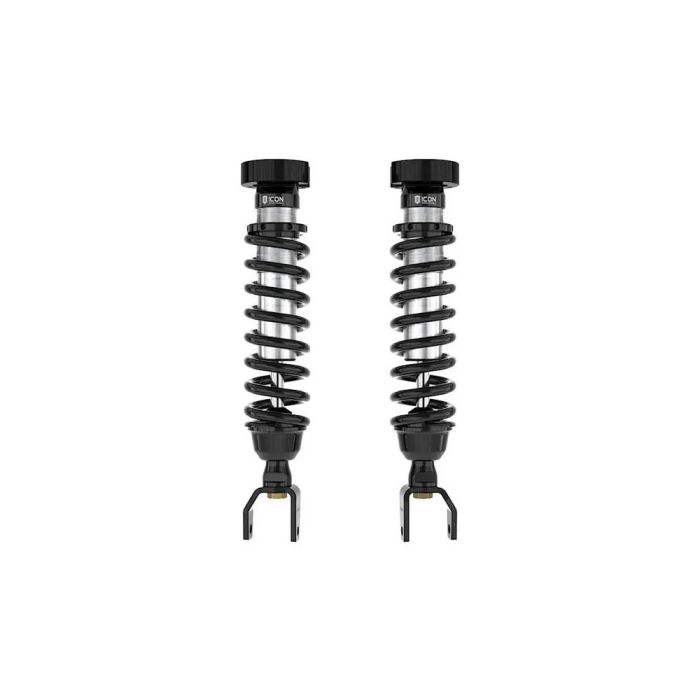

ICON 2019-Up Ram 1500 2-3" Lift Front 2.5 VS Coilover Kit- ICON-211010

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-UP Ram 1500 trucks. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3" of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.

View Installation Instructions

Features:

• Increased wheel travel and ride quality over stock
• 100% Bolt-on - no drilling, cutting or welding necessary for installation
• Unique valving developed for the lighter weight and chassis dynamics of the 2019-Up Ram 1500
• Vehicle specific tuned for superior shock damping and control
• Adjustable from 2-3" of front lift height over stock
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" diameter shaft
• High strength alloy CNC machined lower mounting clevis
• FK rod end bearings for extended longevity and minimal deflection

• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Adjustable Damping: NO
• Adjustable Height: Yes
• Body Diameter: 2,5 IN
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Clevis
• Material: Aluminum
• Material: Steel
• Maximum Lift: 3 IN
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
• Remote Reservoir: NO
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
• Shaft Diameter: 0.875 IN
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Clevis Holes
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Mounting Plate

• Oem Wheels & Tires Fitment: Yes
• 2019-Up Ram 1500 Rebel Trim Lift Height Range 1.25-2.25" Over Stock
• Not Compatible With 2019-Up Ram 1500 Classic Trim
• Not Compatible With 2020-Up Ram 1500 Trx Trims
• Not Compatible With Models Equipped With Factory Air Ride System.
• Requires Installation Of Aftermaket Front Upper Contrrol Arms. Icon Part #S 218550Dj Or 218560Dj Recommended.
• Spring Rates Optimized For Use With Gas Engines. Not Recommended For Eco-Diesel Equipped Models.

• Ram 1500 Rebel Gas 2019-2022
• Ram 1500 Limited Gas 2019-2022
• Ram 1500 Sport Gas 2019-2022
• Ram 1500 SXT Gas 2019-2019
• Ram 1500 Laramie Gas 2019-2022
• Ram 1500 Big Horn Gas 2019-2022
• Ram 1500 Lone Star Gas 2019-2022
• Ram 1500 Tradesman Gas 2019-2022
• Ram 1500 Laramie Longhorn Gas 2019-2021
• Ram 1500 SLT Gas 2020-2021
• Ram 1500 ST Gas 2020-2021
• Ram 1500 Hemi Sport Gas 2020-2021
• Ram 1500 Longhorn Gas 2021-2021
• Ram 1500 Limited Longhorn Gas 2021-2022
